현재위치: HOME > PRODUCT > PRODUCT INFORMATION > N6125 SERIES

PDF DOWNLOAD

N6125 C SERIES 소개표
Product Name	N6125 C SERIES
Voltage	AC 125 / 250V
Characteristic	Fast Acting Type
Features	Environmentally conscious - Pb Free, Halogen Free, Antimony Free - REACH (SVHC), RoHS High performance material can protect PCB against ambient temperature.
Solderability	Pre Heating : 150℃ ± 10℃, 120sec Solder bath : 245℃ ± 5℃, 10s ± 1sec Reflow : 260℃ ± 10℃, 10s ± 1sec
Delating	lower temperature : -40℃ higher temperature : +125℃

Agency Approvals
Agency Approvals
AGENCY	AGENCY FILE No.	AMPERE RANGE
	E328408	0.50A~5.00A
	E328408	0.50A~5.00A
	SG05002-14004~11003A	0.50A~5.00A (125V)
	SG05002-14003~11001A	0.50A~5.00A (250V)

Dimensions
Dimensions

Electrical Characteristics for Series
Electrical Characteristics for Series
% of Ampere Rating	Ampere Rating	Opening Time at 25℃
100%	1.00A~5.00A	4hour minimum
200%	1.00A~5.00A	5sec maximum

Dimensions
Device Type	Dimensions(mm) ± 0.1mm
Device Type	L1	L2	W	T1	T2	C	D	E	F	G
N6125 C Series	6.1	4.5	2.7	1.2	(0.5)	3.2	1.45	1.5	4.5	0.8

Recommended Pad Layouts
Recommended Pad Layouts	Dimensions(mm)
Recommended Pad Layouts	a	b	c	d	e
	2.375	2.8	2.375	3.4	7.55

Electrical Specification
Electrical Specification
Ampere Rating (A)	Marking	Rated Voltage (V)	Fusing Time (sec)	Internal Nominal R(mΩ)	Rated Ambient Temperature	Operating Temperature Range
0.50A	CC	125/250	5 sec maximum at 250% rated current	350	Body : 95℃ Contact : 70℃	-40℃ to +125℃
0.75A	CD	125/250		139
1.00A	CE	125/250		78
1.25A	CF	125/250		62
1.50A	CG	125/250		48
1.60A	CG1	125/250		45
1.75A	CH	125/250		39
2.00A	CI	125/250		28
2.50A	CJ	125/250		23
3.00A	CK	125/250		19
3.50A	CL	125/250		16
4.00A	CM	125/250		14
4.50A	CN	125/250		12
5.00A	CO	125/250		10

※ Best Choice of Micro Fuse : Full Load Ampere (F.L.A) for Electronic System Operation × 125%
(ex) Micro Fuse Choice for 1A Electronic System : 1A × 125% = 1.25A
(This electronic system must using of Micro Fuse with 1.25A rated current.)

Performance Characteristics
Performance Characteristics			Test Enviroment - Ambient Temperature : 10℃ - 50℃ , Humidity : 45% - 85%
No	Test Item	Test Condition	Requirement
1	Resistivity Test	Temp : Ambient It is applied for 1 hour and 15min off at 110% of rated current	Duration : 100 Hours(Endurance Test) Measure Voltage drop. Do not exceed 10%
2	Time/Current Characteristic	Apply 200% of rated current	Fusing Time : 5 sec maximum
3	Temperature Rising	Measure the temperature at surface of device	Body : 95℃ Max Contact : 70℃ Max
4	Cycling Test	Lower temperature : -40℃ Upper temperature : +125℃	No. of cycling Time : 5 No Open during cycling
5	Endurance Test	Test condition : Nominal ambient Temp. and Relative humidity Test potential 1. Cycle of 1hour “ON” and 15min “OFF” at 105% rated current for 100 times. 2. After above the test, inflict 125% rated current for 1hour	The voltage drop across the fuse after the test shall not have increased by more than 10% of the value measured before test

Derating Curve
Derating Curve

Reflow Condiction
Reflow Condiction

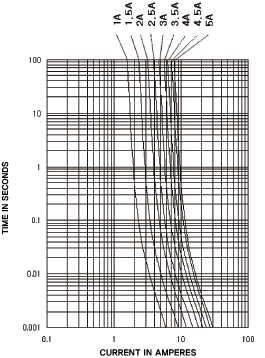

Time / Current Characteristics
Time / Current Characteristics

PDF DOWNLOAD

N6125 A SERIES 소개표
Product Name	N6125 A SERIES
Voltage	AC 125 / 250V
Characteristic	Time Delay Type
Features	Environmentally conscious - Pb Free, Halogen Free, Antimony Free - REACH (SVHC), RoHS High performance material can protect PCB against ambient temperature.
Solderability	Pre Heating : 150℃ ± 10℃, 120sec Solder bath : 245℃ ± 5℃, 10s ± 1sec Reflow : 260℃ ± 10℃, 10s ± 1sec
Delating	lower temperature : -40℃ higher temperature : +125℃

Agency Approvals
Agency Approvals
AGENCY	AGENCY FILE No.	AMPERE RANGE
	E328408	0.50A~5.00A
	E328408	0.50A~5.00A
	CA12P3160	1.00A~3.15A(250V)
	SG05002-12001,2 SG05002-10001A,3A	1.00A~3.15A(250V) 1.00A~5.00A(125V)
	KR-KE-00054	1.00A~3.15A(250V)
	JET 6603-31007-2001-1	0.50A~5.00A(250V)
	40038156, 40037465	0.50A~2.00A(250V)
	CQC 13012100572	1.00A~1.60A(250V)
	CA15P6048	1.00~3.15A (250V)
	CA15P3049	1.25~2.50A (250V)

Dimensions
Dimensions

Electrical Characteristics for Series
Electrical Characteristics for Series
% of Ampere Rating	Ampere Rating	Opening Time at 25℃
100%	1.00A~5.00A	4hour minimum
250%	1.00A~5.00A	1~120 sec

Dimensions
Device Type	Dimensions(mm) ± 0.1mm
Device Type	L1	L2	W	T1	T2	C	D	E	F	G
N6125 A Series	6.1	4.5	2.7	1.2	(0.8)	3.2	1.45	1.5	4.5	0.8

Recommended Pad Layouts
Recommended Pad Layouts	Dimensions(mm)
Recommended Pad Layouts	a	b	c	d	e
	2.375	2.8	2.375	3.4	7.55

Electrical Specification
Electrical Specification
Ampere Rating (A)	Marking	Rated Voltage (V)	Fusing Time(sec)	Internal Nominal R(mΩ)	Rated Ambient Temperature	Operating Temperature Range
0.35A	AB	250	1~120 sec at 250% rated current	1020	Body : 95℃ Contact : 70℃	-40℃ to +125℃
0.50A	AC	125/250		255
1.00A	AE	125/250		133
1.25A	AF	125/250		91
1.50A	AG	125/250		75
1.60A	AG1	125/250		72
1.75A	AH	125/250		45
2.00A	AI	125/250		22
2.50A	AJ	125/250		20
3.00A	AK	125/250		23
3.50A	AL	125/250		21
4.00A	AM	125/250		19
4.50A	AN	125/250		17
5.00A	AO	125/250		16

※ Best Choice of Micro Fuse : Full Load Ampere (F.L.A) for Electronic System Operation × 125%
(ex) Micro Fuse Choice for 1A Electronic System : 1A × 125% = 1.25A
(This electronic system must using of Micro Fuse with 1.25A rated current.)

Performance Characteristics
Performance Characteristics			Test Enviroment - Ambient Temperature : 10℃ - 50℃ , Humidity : 45% - 85%
No	Test Item	Test Condition	Requirement
1	Resistivity Test	Temp : Ambient It is applied for 1 hour and 15min off at 110% of rated current	Duration : 100 Hours(Endurance Test) Measure Voltage drop. Do not exceed 10%
2	Time/Current Characteristic	Apply 250% of rated current	Fusing Time : 1~120sec
3	Temperature Rising	Measure the temperature at surface of device	Body : 95℃ Max Contact : 70℃ Max
4	Cycling Test	Lower temperature : -40℃ Upper temperature : +125℃	No. of cycling Time : 5 No Open during cycling
5	Endurance Test	Test condition: Nominal ambient Temp. and Relative humidity Test potential 1. Cycle of 1hour “ON” and 15min “OFF” at 105% rated current for 100 times. 2. After above the test, inflict 125% rated current for 1hour	The voltage drop across the fuse after the test shall not have increased by more than 10% of the value measured before test

Derating Curve
Derating Curve

Reflow Condiction
Reflow Condiction

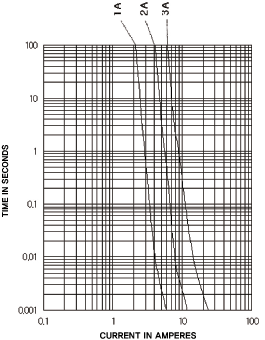

Time / Current Characteristics
Time / Current Characteristics

PDF DOWNLOAD

N6125 HC SERIES 소개표
Product Name	N6125 HC SERIES
Voltage	DC 65 / 125V, AC 125V
Characteristic	Fast Acting Type, High Current Type
Features	Environmentally conscious - Pb Free, Halogen Free, Antimony Free - REACH (SVHC), RoHS High performance material can protect PCB against ambient temperature.
Solderability	Pre Heating : 150℃ ± 10℃, 120sec Solder bath : 245℃ ± 5℃, 10s ± 1sec Reflow : 260℃ ± 10℃, 10s ± 1sec
Delating	lower temperature : -40℃ higher temperature : +125℃

Agency Approvals
Agency Approvals
AGENCY	AGENCY FILE No.	AMPERE RANGE
	E328408	6.30A~12.00A
	E328408	6.30A~12.00A
	SG05002-11002A	1.00A~5.00A(125V) 8.00A~10.00A

Dimensions
Dimensions

Electrical Characteristics for Series
Electrical Characteristics for Series
% of Ampere Rating	Ampere Rating	Opening Time at 25℃
100%	6.30A~12.00A	4hour minimum
200%	6.30A~12.00A	5 sec maximum

Dimensions
Device Type	Dimensions(mm) ± 0.1mm
Device Type	L1	L2	W	T1	T2	C	D	E	F	G
N6125 HC Series	6.1	4.5	2.7	1.2	(0.5)	3.2	1.45	1.5	4.5	0.8

Recommended Pad Layouts
Recommended Pad Layouts	Dimensions(mm)
Recommended Pad Layouts	a	b	c	d	e
	2.375	2.8	2.375	3.4	7.55

Electrical Specification
Electrical Specification
Ampere Rating (A)	Marking	Rated Voltage (V)	Fusing Time(sec)	Internal Nominal R(mΩ)	Rated Ambient Temperature	Operating Temperature Range
6.30A	HCP	DC65/125V AC125V	5 sec maximum at 200% rated current	9	Body : 95℃ Contact : 70℃	-40℃ to +125℃
8.00A	HCQ	DC65/125V AC125V		8
10.00A	HCR	DC65/125V AC125V		7
12.00A	HCS	DC65/125V AC125V		4

※ Best Choice of Micro Fuse : Full Load Ampere (F.L.A) for Electronic System Operation × 125%
(ex) Micro Fuse Choice for 1A Electronic System : 1A × 125% = 1.25A
(This electronic system must using of Micro Fuse with 1.25A rated current.)

Performance Characteristics
Performance Characteristics			Test Enviroment - Ambient Temperature : 10℃ - 50℃ , Humidity : 45% - 85%
No	Test Item	Test Condition	Requirement
1	Resistivity Test	Temp : Ambient It is applied for 1 hour and 15min off at 110% of rated current	Duration : 100 Hours(Endurance Test) Measure Voltage drop. Do not exceed 10%
2	Time/Current Characteristic	Apply 200% of rated current	Fusing Time : 5 sec maximum
3	Temperature Rising	Measure the temperature at surface of device	Body : 95℃ Max Contact : 70℃ Max
4	Cycling Test	Lower temperature : -40℃ Upper temperature : +125℃	No. of cycling Time : 5 No Open during cycling
5	Endurance Test	Test condition: Nominal ambient Temp. and Relative humidity Test potential 1. Cycle of 1hour “ON” and 15min “OFF” at 105% rated current for 100 times. 2. After above the test, inflict 125% rated current for 1hour	The voltage drop across the fuse after the test shall not have increased by more than 10% of the value measured before test

Derating Curve
Derating Curve

Reflow Condiction
Reflow Condiction

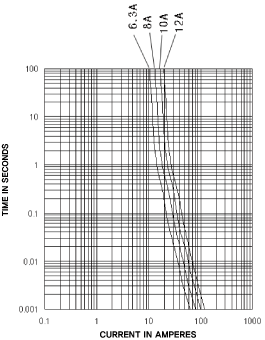

Time / Current Characteristics
Time / Current Characteristics
