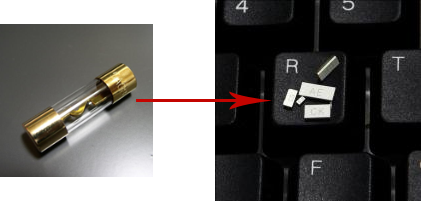

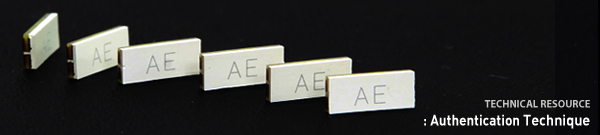

Market needs the SMD Micro Fuse an ideal solution for today’s smaller electronics designs, especially in the growing markets for notebook PCs and battery packs, where it is smaller commonly used.

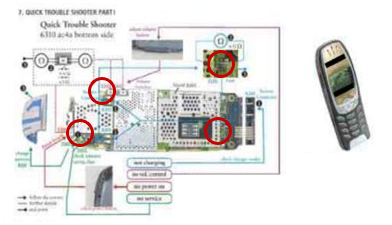

Mobile Phone

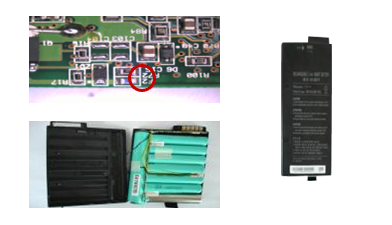

Notebook Battery

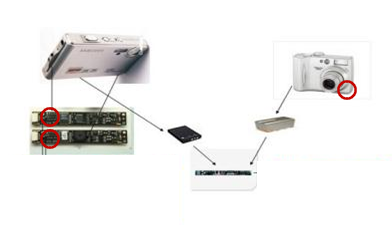

Digital Camera

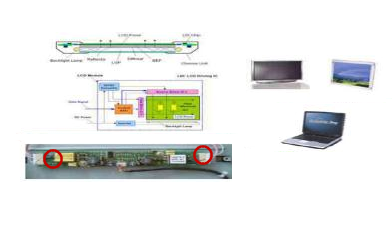

Digital LCD module

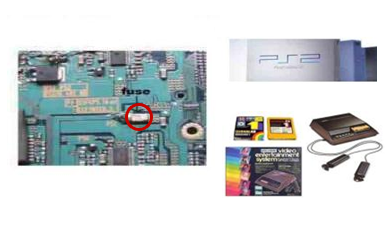

Video game console

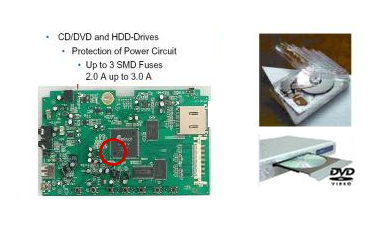

CD/DVD HDD storage

Other suggested applications are in the DC input side of electronic systems such as LCD backlight inverters, DC/DC power modules, car navigation systems, network equipment, telecom equipment, electronic signage and portable consumer electronics.

•
• 6125 : 6.1mm × 2.5mm
  4524 : 4.5mm × 2.4mm
  1206 : 3.2mm × 1.6mm
  0603 : 1.6mm × 0.8mm
  0402 : 1.0mm × 0.6mm

•
•
•
•
•
