제품소개 / N6125 SERIES

  • C TYPE
  • A TYPE
  • HC TYPE

C TYPE

PDF DOWNLOAD
N6125 C SERIES 소개표
Product Name N6125 C SERIES
Voltage AC 125 / 250V
Characteristic Fast Acting Type
Features Environmentally conscious
- Pb Free, Halogen Free, Antimony Free
- REACH (SVHC), RoHS
High performance material can protect PCB against ambient temperature.
Solderability Pre Heating : 150℃ ± 10℃, 120sec
Solder bath : 245℃ ± 5℃, 10s ± 1sec
Reflow : 260℃ ± 10℃, 10s ± 1sec
Delating lower temperature : -40℃
higher temperature : +125℃
Agency Approvals
Agency Approvals
AGENCY AGENCY FILE No. AMPERE RANGE
E328408 0.50A~5.00A
E328408 0.50A~5.00A
SG05002-14004~11003A 0.50A~5.00A
(125V)
SG05002-14003~11001A 0.50A~5.00A
(250V)
Dimensions
Dimensions
Electrical Characteristics for Series
Electrical Characteristics for Series
% of Ampere Rating Ampere Rating Opening Time
at 25℃
100% 1.00A~5.00A 4hour minimum
200% 1.00A~5.00A 5sec maximum
Dimensions
Device Type Dimensions(mm) ± 0.1mm
L1 L2 W T1 T2 C D E F G
N6125 C Series 6.1 4.5 2.7 1.2 (0.5) 3.2 1.45 1.5 4.5 0.8
Recommended Pad Layouts
Recommended Pad Layouts Dimensions(mm)
a b c d e
2.375 2.8 2.375 3.4 7.55
Electrical Specification
Electrical Specification
Ampere
Rating
(A)		 Marking Rated
Voltage
(V)		 Fusing Time (sec) Internal
Nominal
R(mΩ)		 Rated
Ambient
Temperature		 Operating Temperature Range
0.50A CC 125/250 5 sec maximum
at 250% rated
current		 350 Body : 95℃
Contact : 70℃		 -40℃
to
+125℃
0.75A CD 125/250 139
1.00A CE 125/250 78
1.25A CF 125/250 62
1.50A CG 125/250 48
1.60A CG1 125/250 45
1.75A CH 125/250 39
2.00A CI 125/250 28
2.50A CJ 125/250 23
3.00A CK 125/250 19
3.50A CL 125/250 16
4.00A CM 125/250 14
4.50A CN 125/250 12
5.00A CO 125/250 10
※ Best Choice of Micro Fuse : Full Load Ampere (F.L.A) for Electronic System Operation × 125%
   (ex) Micro Fuse Choice for 1A Electronic System : 1A × 125% = 1.25A
   (This electronic system must using of Micro Fuse with 1.25A rated current.)
Performance Characteristics
Performance Characteristics Test Enviroment -
Ambient Temperature : 10℃ - 50℃ ,
Humidity : 45% - 85%
No Test Item Test Condition Requirement
1 Resistivity
Test
  • Temp : Ambient
  • It is applied for 1 hour and 15min off at 110% of rated current
  • Duration : 100 Hours(Endurance Test)
  • Measure Voltage drop. Do not exceed 10%
2 Time/Current
Characteristic
  • Apply 200% of rated current
  • Fusing Time : 5 sec maximum
3 Temperature
Rising
  • Measure the temperature at surface of device
  • Body : 95℃ Max
  • Contact : 70℃ Max
4 Cycling
Test
  • Lower temperature : -40℃
  • Upper temperature : +125℃
  • No. of cycling Time : 5
  • No Open during cycling
5 Endurance
Test
  • Test condition : Nominal ambient Temp. and Relative humidity
  • Test potential
    1. Cycle of 1hour “ON” and 15min “OFF” at 105% rated current for 100 times.
    2. After above the test, inflict 125% rated current for 1hour
  • The voltage drop across the fuse after the test shall not have increased by more than 10% of the value measured before test
Derating Curve
Derating Curve
Reflow Condiction
Reflow Condiction

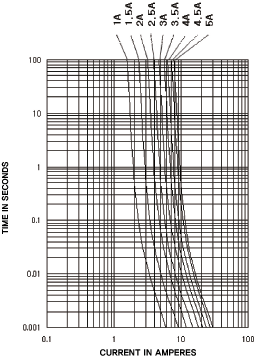

Time / Current Characteristics

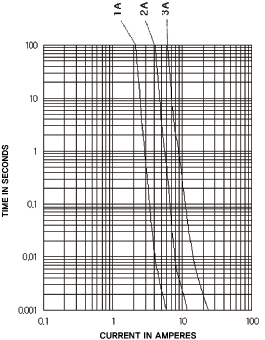

Time / Current Characteristics
