제품소개 / N0603 SERIES

  • F TYPE
  • T TYPE

F TYPE

PDF DOWNLOAD
N0603 F SERIES 소개표
Product Name N0603 F SERIES
Voltage DC 32 / 63V
Characteristic Fast Acting Type
Features Environmentally conscious
- Pb Free, Halogen Free, Antimony Free
- REACH (SVHC), RoHS
High performance material can protect PCB against ambient temperature.
Solderability Pre Heating : 150℃ ± 10℃, 120sec
Solder bath : 245℃ ± 5℃, 10s ± 1sec
Reflow : 260℃ ± 10℃, 10s ± 1sec
Delating lower temperature : -40℃
higher temperature : +125℃
Agency Approvals
Agency Approvals
AGENCY AGENCY FILE No. AMPERE RANGE
E328408 0.75A~5.00A
E328408 0.75A~5.00A
Dimensions
Dimensions
Electrical Characteristics for Series
Electrical Characteristics for Series
% of Ampere Rating Ampere Rating Opening Time
at 25℃
100% 0.75A~5.00A 4hour minimum
200% 0.75A~5.00A 5sec maximum
Dimensions
Device Type Dimensions(mm) ± 0.1mm
L W T C D
N0603 F Series 1.6 0.8 0.6 1.2 0.3
Recommended Pad Layouts
Recommended Pad Layouts Dimensions(mm)
a b c d e
0.7 0.6 0.7 1.1 2.0
Electrical Specification
Electrical Specification
Ampere
Rating
(A)		 Marking Rated
Voltage
(V)		 Fusing Time (sec) Internal
Nominal
R(mΩ)		 Rated
Ambient
Temperature		 Operating Temperature Range
0.75A FD 32/63V 5 sec maximum
at 200% rated
current		 95 Body : 95℃
Contact : 70℃		 -40℃
to
+125℃
1.00A FE 32/63V 60
1.25A FF 32/63V 50
1.50A FG 32/63V 45
1.60A FH 32/63V 42
1.75A FI 32/63V 35
2.00A FJ 32/63V 28
2.50A FK 32/63V 22
3.00A FL 32/63V 17
3.15A FM 32/63V 16
3.50A FN 32/63V 15
4.00A FO 32/63V 14
4.50A FP 32/63V 12
5.00A FQ 32/63V 10
※ Best Choice of Micro Fuse : Full Load Ampere (F.L.A) for Electronic System Operation × 125%
   (ex) Micro Fuse Choice for 1A Electronic System : 1A × 125% = 1.25A
   (This electronic system must using of Micro Fuse with 1.25A rated current.)
Performance Characteristics
Performance Characteristics Test Enviroment -
Ambient Temperature : 10℃ - 50℃ ,
Humidity : 45% - 85%
No Test Item Test Condition Requirement
1 Resistivity
Test
  • Temp : Ambient
  • It is applied for 1 hour and 15min off at 110% of rated current
  • Duration : 100 Hours(Endurance Test)
  • Measure Voltage drop. Do not exceed 10%
2 Time/Current
Characteristic
  • Apply 200% of rated current
  • Fusing Time : 5 sec maximum
3 Temperature
Rising
  • Measure the temperature at surface of device
  • Body : 95℃ Max
  • Contact : 70℃ Max
4 Cycling
Test
  • Lower temperature : -40℃
  • Upper temperature : +125℃
  • No. of cycling Time : 5
  • No Open during cycling
5 Endurance
Test
  • Test condition : Nominal ambient Temp. and Relative humidity
  • Test potential
    1. Cycle of 1hour “ON” and 15min “OFF” at 105% rated current for 100 times.
    2. After above the test, inflict 125% rated current for 1hour
  • The voltage drop across the fuse after the test shall not have increased by more than 10% of the value measured before test
Derating Curve
Derating Curve
Reflow Condiction
Reflow Condiction

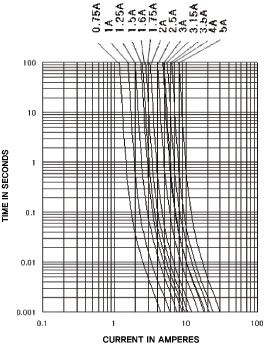

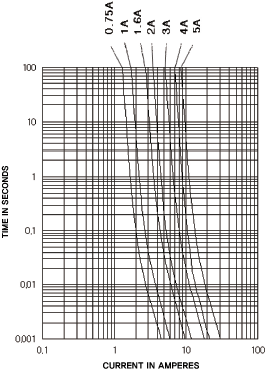

Time / Current Characteristics
Time / Current Characteristics
